제품소개


LCD

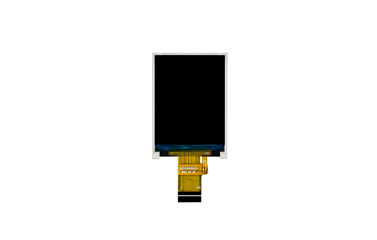

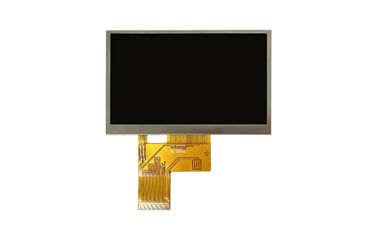

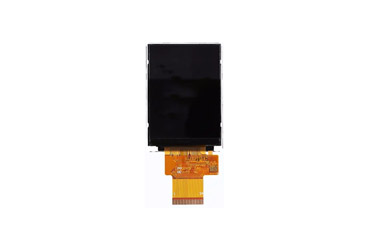

2.0" 240 x 320 2.4" 240 x 320 4.3" 480 x 272

• Brightness : 1400nit@NTSC 60%
• Pixel Pitch : 0.1275 (H) x 0.1275 (V)
• Viewing Angle : 80/80/80/80
• Contrast : 800:1
• Interface : RGB + SPI

• Brightness : 730nit@NTSC 70%
• Pixel Pitch : 0.153 (H) x 0.153 (V)
• Viewing Angle : 80/80/80/80
• Contrast : 1000:1
• Interface : RGB + SPI

• Brightness : 500nit@NTSC 85%
• Pixel Pitch : 0.198 (H) x 0.198 (V)
• Viewing Angle : 80/80/80/80
• Contrast : 1000:1
• Interface : RGB

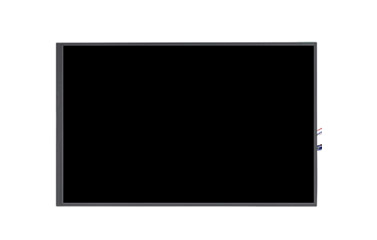

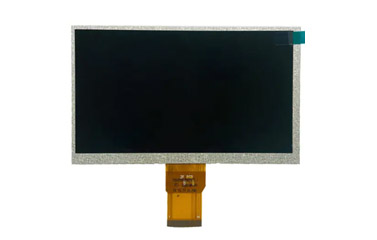

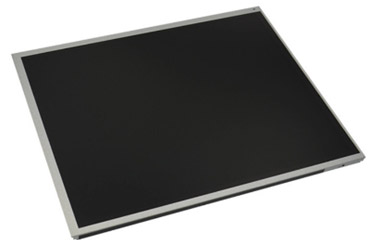

7.0" 1024 x 600 WSVGA 10.1" 1024 x 600 15.0" 1024 x 768

• Brightness : 550nit@NTSC 50%
• Pixel Pitch : 0.15 x 0.15
• Viewing Angle : 80/80/80/80
• Contrast : 900:1
• Interface : LVDS

• Brightness : 280nit@NTSC 72%
• Pixel Pitch : 0.2175 (H) x 0.2088 (V)
• Viewing Angle : 80/80/80/80
• Contrast : 1000:1
• Interface : LVDS

• Brightness : 350nit@NTSC 72%
• Pixel Pitch : 0.297 (H) x 0.297 (V)
• Viewing Angle : 89/89/89/89
• Contrast : 1200:1
• Interface : eDP

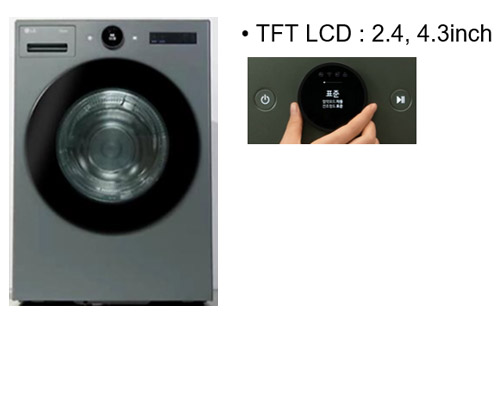

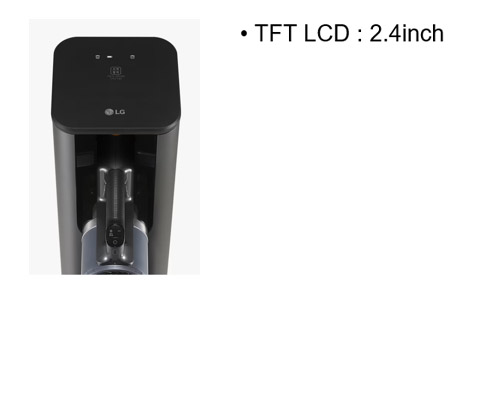

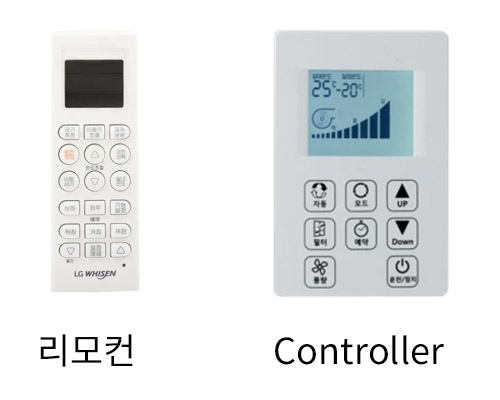

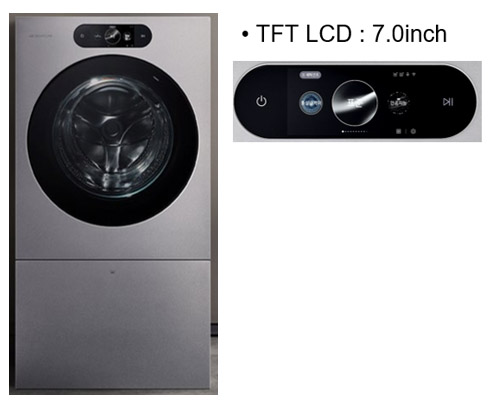

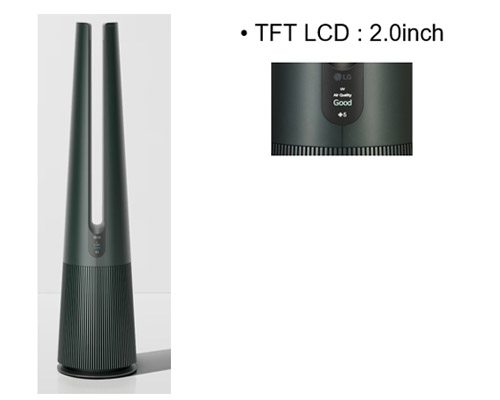

세탁기/건조기 공조기/청소기

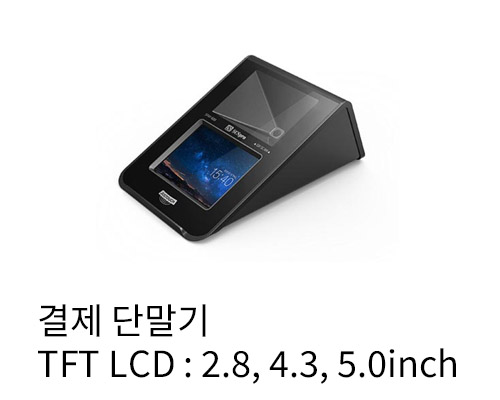

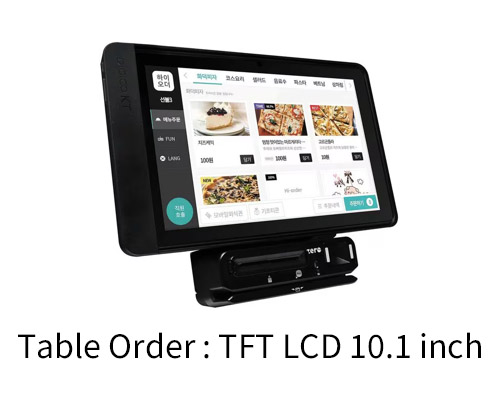

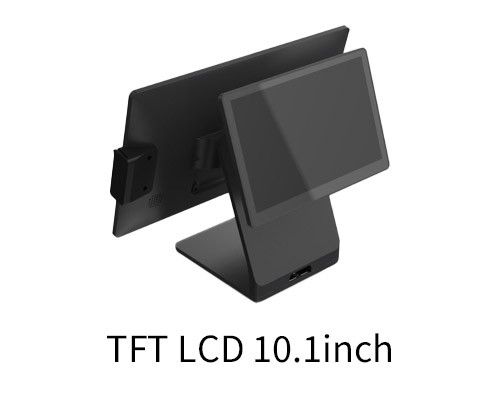

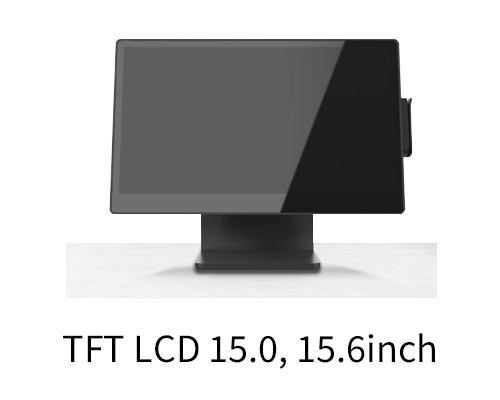

POS 테이블오더/결제 단말기

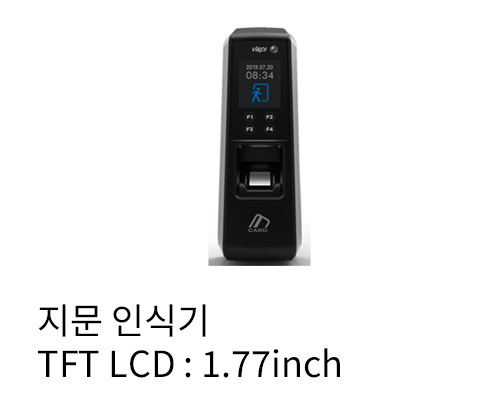

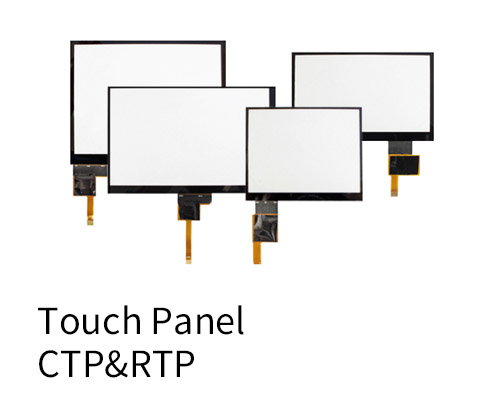

보안 터치

MONO LCD
